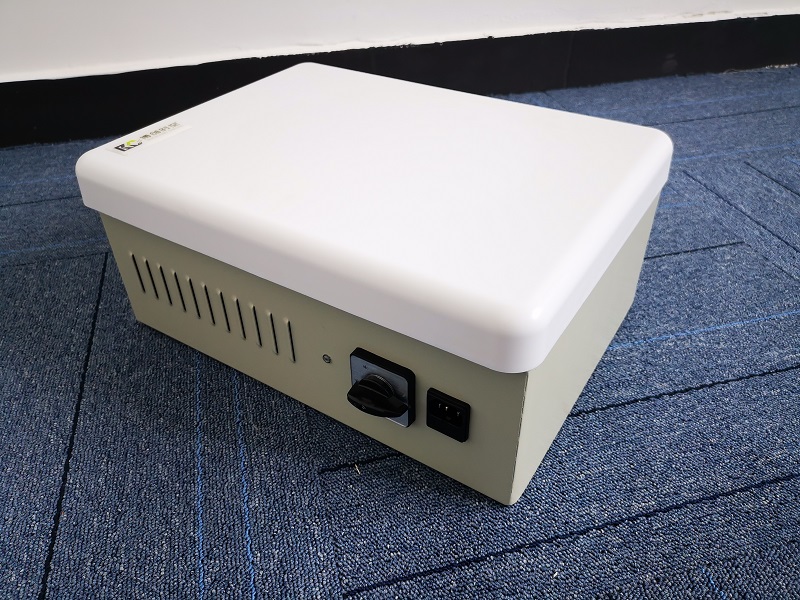

100W high power 5g Mobile Phone Signal Jammer 2.4G + 5.2g + 5.8G
wireless network
WiFi signal shielding jammer Product introduction
Product model: bcsk-810k12 high power mobile phone
signal jammer of Bochuang spatiotemporal brand
According to the principle of mobile phone (radio communication),
this product adopts broadband scanning technology to cut off the
wireless signal connection of mobile phone 2G, 3G, 4G, 5g, 2.4 +
5.2 + 5.8G wiif, wireless microphone, invisible headset, wireless
pinhole camera and other wireless devices, which shows the
phenomena of search network, no signal, no service system and so
on. Using brand imported components, independent R & D and
production, stable performance and long-term durability! The signal
radiation is similar to that of mobile phones and is not harmful to
human body.
Applicable place
▲ various meeting rooms, auditoriums, courts, libraries,
examination rooms, schools, cinemas and opera houses;
▲ personal private places;
▲ government, army, prison, public security, command system and
other places where the use of mobile communication equipment is
prohibited.
Product features
1. Bcsk-810k12, a universal high-power Mobile Phone
Signal Jammer of Bochuang spacetime brand, can effectively shield domestic 2G /
3G / 4G / 5G mobile phone signals, 2.4 + 5.8G WiFi and walkie
talkie, and can also customize the frequency according to customer
requirements.
2. Transmission power: 10W per channel, 120W, imported power
amplifier and IC.
3. Power supply specification: ac220v3a -- 24VDC / 20A (high
quality industrial switching power supply)
4. Standing wave protection technology is adopted, which is not
easy to be damaged even under no-load.
5. Heat dissipation system: Six high-efficiency aluminum alloy
radiators, which can be used for 7 * 24 hours for a long time.
6. The panel super gain antenna is adopted, and the antenna angle
is up and down & left and right 120 °
7. Network control can be selected, and the equipment can be
switched on and off regularly through the intelligent shielding
management system.
| projectparameter | Frequency (unit: MHz) | output power |
Brand: Bochuang spacetime
Model: bcsk-810k12
Transmission frequency band | | 870-880 | 40dBm (10W) |
| 2. DCS | 1805-1920 | 40dBm (10W) |
| 930-960 | 40dBm (10W) |
| 2010-2025 | 40dBm (10W) |
| 2110-2170 | 40dBm (10W) |
| 2300-2400 | 40dBm (10W) |
| 2400-2485 | 40dBm (10W) |
| 2515-2675 | 40dBm (10W) |
| 3300-3600 | 37dBm (5W) |
| 4800-5000 | 37dBm (5W) |
| 5150-5350 | 37dBm (5W) |
| 5725-5875 | 37dBm (5W) |
| Total output
power | | 100W |
| Power supply mode | AC220V3A --24VDC/20A | Built in industrial power adapter |
| Overall power consumption | ≤500W | 220V/3A |
| relative humidity | ≤85% | Keep the host dry during storage |
| ambient temperature | -30℃至60℃ | Brand: Bochuang spacetime |
| dissipate heat | Built in 6 cooling fans | Model: bcsk-810k12 |
| Host size | (Company:mm )400*300*165 | Blocking frequency:2G+3G+4G+5G+WIFI |
| antenna | Built in directional array antenna | |
| Antenna gain | ≥7dBi | |
| Host weight | 8Kg | Excluding outer packaging |
| Cleaning and maintenance | Do not use chemical solvents during cleaning. Just use a wet rag
without maintenance | |
matters needing attention
1. The external mobile phone
signal jammer of Bochuang spacetime brand must first install the antenna
according to the corresponding identification on the host, and then
connect the host power. The built-in jammer does not need to be
installed, plug and play.
2. The effective coverage of the shield is a circular area centered
on the shield, so pay attention to correctly select the placement
position of the shield to avoid shielding dead angle; If it is a
directional antenna, the alignment direction can be adjusted
according to the standard sector angle of the antenna.
3 the shield shall be placed in a well ventilated place, avoiding
the shielding of large objects and the strong electric and magnetic
source of strong heat source as far as possible, so as to ensure
the shielding effect and stable operation for a long time.
4 when the shield works, it is not allowed to stack other articles
and disassemble the antenna on it, so as not to affect the
shielding effect and damage the machine.
5 when the shield is not in use, the power supply should be cut off
in time to avoid affecting the normal use of the mobile phone.
6 when using the shield outdoors, pay attention to dust prevention
and waterproof. Please keep away from corrosive gases and liquids,
and do a good job in dust and moisture prevention, so as not to
accelerate the aging of internal components of the equipment
7 when the site area used is larger than the effective shielding
range, it is recommended to use multiple shields for honeycomb
installation to ensure the shielding effect.
8. Since the power supply and antenna are specially matched with
the host and are debugged one by one during factory debugging,
please try not to use them interchangeably to ensure the best
effect..
9. The shield is guaranteed for one year and maintained for life.
Problem solving
1 Why do some mobile phone signal indications still have signal
indications when Bochuang spatiotemporal brand Signal Jammer works?
A: This is just an illusion. In fact, at this time, the mobile
phone has been unable to communicate. When you press the pull-out
button at will, you will find that there is no signal indication on
the signal indicator.
2 will the signal shield interfere with the normal operation of
other electronic equipment?
A: No. This is because the electromagnetic signal sent by the
signal shield completely falls within the working frequency band of
the mobile phone specified by the state, which will only block the
mobile phone communication. And this signal is always in a
relatively static state and will not affect any electronic
equipment.
3 is Bochuang space-time brand Signal
Jammer harmful to human body and mobile phone?
A: please rest assured that the electromagnetic signal intensity
emitted by the signal shield is very weak. The test data show that
this signal intensity will not cause harm to the human body. At the
same time, the signal shield only blocks the forward signal of the
mobile phone, so that the mobile phone can not contact the base
station, so it will not cause any damage to the mobile phone
itself.
4 is there any difference in the action distance of Bochuang
spatiotemporal brand Signal Jammer when used indoors and outdoors?
A: Yes. The effective distance (10-40m) of signal shield generally
refers to the indoor distance. In outdoor open areas, the effective
distance of shielding can reach hundreds of meters. It should be
noted that whether used indoors or outdoors, the effective working
distance of the shield is related to the environmental conditions
at that time, such as the distance from the base station, the
location, etc. Therefore, when using the signal
shield, this factor should be fully considered to avoid shielding dead
angle, which will affect the shielding effect.
5 is the effect of Bochuang spatiotemporal brand Signal Jammer on
GSM mobile phones and CDMA mobile phones the same?
A: that's a good question. Because the anti-interference
performance of CDMA mobile phones is much better than that of GSM
mobile phones, the effective shielding distance of signal shield
for CDMA mobile phones is less than that of GSM mobile phones, but
the difference is not very large, about 2-4m. However, users are
also reminded that in some particularly important places, if
necessary, the number of signal shields in the field should be
increased to ensure the shielding effect of CDMA mobile phones.
6. After the
Signal Jammer of Bochuang spatiotemporal brand works for a period of time, the
casing is hot. Will it damage the machine if it works for a long
time?
A: Thank you for your care. This is a normal phenomenon. In design,
we use the thermal conductivity of aluminum alloy wire drawing
casing to assist heat dissipation. So as to ensure long-term stable
operation. Therefore, the hot casing will not damage the machine.
