Bochuang spacetime brand electromagnetic wave gun 500-1000m aviation control driving aerial camera Oh anti UAV jammer

Product information

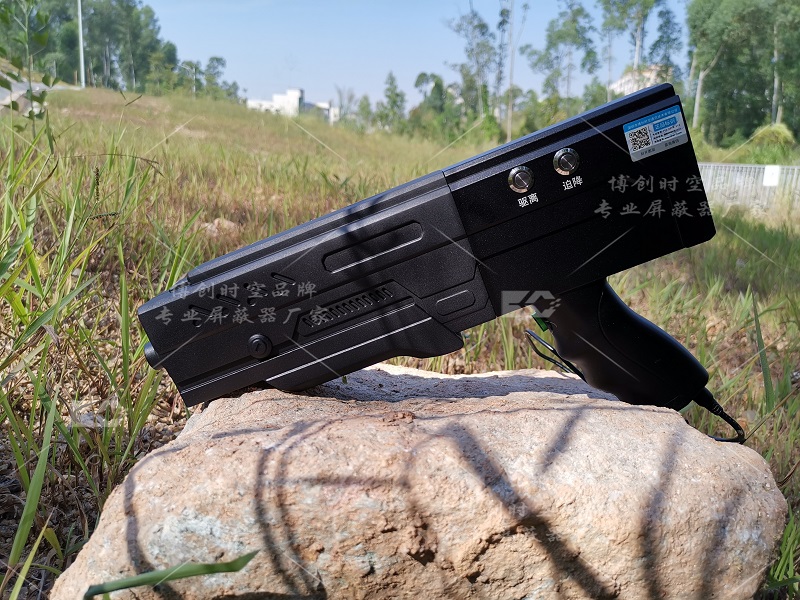

Name: Bochuang spacetime brand gun type high-power remote control UAV signal shield interceptor

Model: bcsk-sq001
Color: Black
Basic specifications
Shielded signal: a full range of remote control UAVs can be customized according to customer requirements, remote control / image transmission 2.4g/5.8g/433/868/912mhz, GPS / Beidou / glonas navigation
Transmission power: 25W
Shielding range: 1000M
Power supply specification: ac110 or 220V to DC24V (built-in battery)
Heat dissipation system: high efficiency heat sink module group
Service time: built in high-capacity lithium battery 24v10ah, continuous operation for 1.5 hours
Product size: 340x185x47mm (including integrated directional antenna)
Weight: about 2.1kg

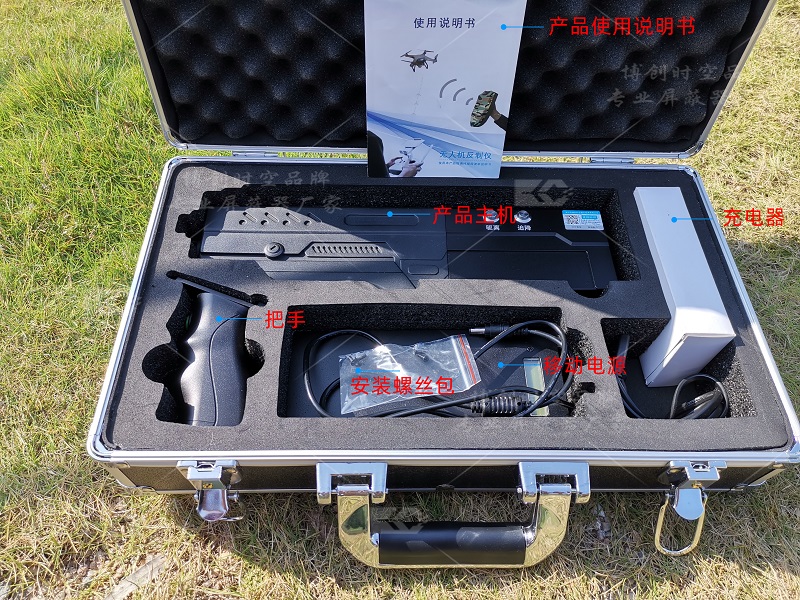

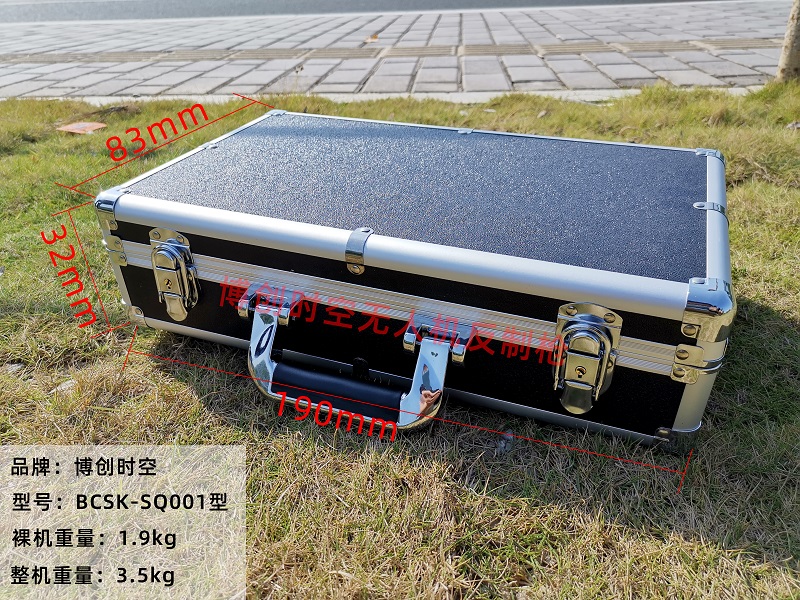

Package details: shield host x1, battery charger, security portable box x1

Functional features
Bochuang spatiotemporal brand portable professional 4-in-1 gun integrated design shields and defends the vast majority of remote control UAV brand series in the market, cuts off all contact between UAVs and controllers, and can customize various frequencies required by customers. Specifically, contact the manufacturer of Shenzhen Bochuang spatiotemporal Communication Technology Co., Ltd
Total output power: 25W, using an integrated 12dBi high gain directional antenna independently designed and developed, with a maximum shielding distance of 200-1000m (depending on the specific use environment and signal strength)
Each circuit is designed with separate modules, VSWR standing wave protection, customizable frequency and easy maintenance
Each channel switch is controlled separately, and the LED light indicates the working state to realize the demand of automatic return or forced landing.
The built-in lithium iron phosphate battery with large capacity and high safety factor is 24v10ah, which can work for about 1.5 hours
Before shipment, each machine has been tested by spectrum analyzer for many times and subjected to long-term load aging to ensure stable quality and power of the machine.
Product description
Bochuang spacetime brand UAV jammer is mainly used for compulsory control of UAVs or flight models in flight, so as to cut off the connection between UAVs and remote controllers from a long distance and ensure the safety of low altitude airspace in the region.
According to the principle of mobile phone (radio communication) and broadband scanning technology, this product can be customized to cut off the remote control UAV remote control / image transmission signal 2.4G 5.8GHz signal, remote control 433MHz, 868mhz 912mhz 916mhz, GPS / Beidou / GLONASS L1L2 positioning and navigation / automatic return signal according to customer needs, which shows the phenomena of searching the network, no signal, no service, etc. Failure of UAV remote control; UAV Ground Control cannot receive aerial pictures and videos; UAV cannot locate; The interceptor can force the UAV to land or return.
Using brand imported components, independent R & D and production, stable performance and long-term durability! It sells well in domestic and foreign markets.
This product supports long-time uninterrupted work, hand-held or vehicle portable use. Through separate and distributed distribution, it is applied to a variety of environments with different areas.
Custom service
Domestic and foreign mobile phone signals, gpsl1-l5, WiFi 2.4G, 5.8G, 3.6ghz, CDMA450 and other frequencies can be customized. For batch orders, silk screen logo can be printed to provide OEM / ODM services
Application occasion
VIP escort, special police explosion-proof, concert, large-scale conference activities, airport management, examination room, prison, military place, court, conference room, theater, hospital, government agency, financial institution, church, temple, library, business negotiation, gas station, personal privacy protection and other places requiring silence, confidentiality and information security.

Functional features
Bochuang space-time brand portable professional 4-in-1 gun integrated design shields and defends the vast majority of remote control UAV brand series in the market, cuts off all contact between UAV and controller, and can customize various frequencies required by customers. Contact the manufacturer specifically
Total output power: 50w-300w can be customized. The integrated 12dBi high gain directional antenna designed and developed independently is adopted, and the shielding distance of 500-3000m can be customized (depending on the specific use environment and signal strength)
Each circuit is designed with separate modules, VSWR standing wave protection, customizable frequency and easy maintenance
Each channel switch is controlled separately, and the LED light indicates the working state to realize the demand of automatic return or forced landing.
The built-in lithium iron phosphate battery with large capacity and high safety factor is 24v10ah, which can work for about 1.5 hours
Before shipment, each machine has been tested by spectrum analyzer for many times and subjected to long-term load aging to ensure stable quality and power of the machine.
Product description
Bochuang spacetime brand UAV launcher jammer is mainly used for compulsory control of UAVs or flight models in flight, so as to cut off the connection between UAVs and remote controllers from a long distance and ensure the safety of low altitude airspace in the region.
According to the principle of mobile phone (radio communication), this product adopts broadband scanning technology to cut off the remote control / image transmission signal 2.4G 5.8GHz signal of remote control UAV, remote control 433MHz, 868mhz, 912mhz, 916mhz, GPS / Beidou / GLONASS L1L2 positioning and navigation / automatic return signal, which shows the phenomena of search network, no signal, no service, etc. Failure of UAV remote control; UAV Ground Control cannot receive aerial pictures and videos; UAV cannot locate; The interceptor can force the UAV to land or return.
Using brand imported components, independent R & D and production, stable performance and long-term durability! It sells well in domestic and foreign markets.
This product supports long-time uninterrupted work, hand-held or vehicle portable use. Through separate and distributed distribution, it is applied to a variety of environments with different areas.
Custom service
Domestic and foreign mobile phone signals, gpsl1-l5, WiFi 2.4G, 5.8G, 3.6ghz, CDMA450 and other frequencies can be customized. For batch orders, silk screen logo can be printed to provide OEM / ODM services
Application occasion
VIP escort, special police explosion-proof, concert, large-scale conference activities, airport management, examination room, prison, military place, court, conference room, theater, hospital, government agency, financial institution, church, temple, library, business negotiation, gas station, personal privacy protection and other places requiring silence, confidentiality and information security.
