Wireless network signal
analyzer hidden camera detector handheld WiFi wireless environment control
instrument 1, Product introduction
1. System description
Bochuang spatiotemporal brand WiFi Positioning control system is a
professional equipment for code interception, control and
positioning of hotspots (access points) and terminals (desktops,
laptops, tablets, mobile phones, smart TVs, cloud cameras, etc.) in
WiFi wireless network environment. It has the characteristics of
high interception rate, good control effect and high positioning
accuracy.
Bochuang space-time WiFi Positioning and control system is widely
used in the security departments and technical reconnaissance
departments of public security, national security, military,
Security Bureau, and other national institutions, as well as the
network security inspection departments of large state-owned
enterprises and private enterprises, so as to prevent the leakage
of trade secrets through wireless networks and cause heavy economic
losses.

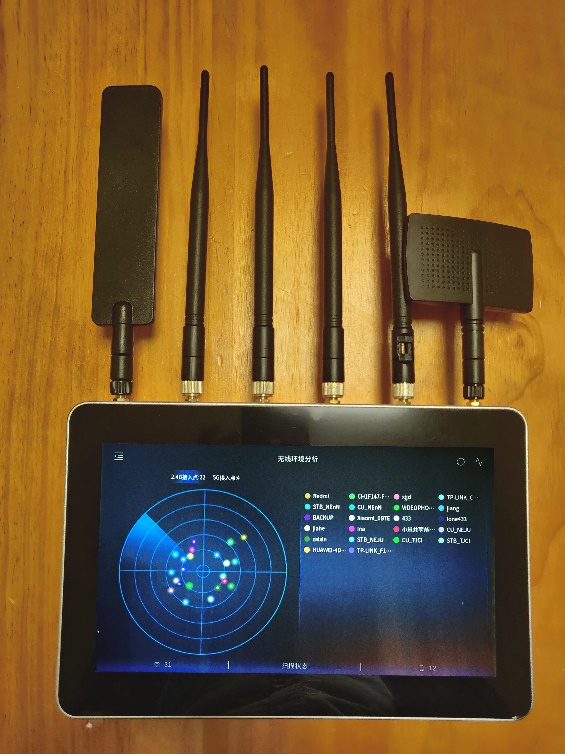

The equipment of WiFi Positioning control system is lightweight and
portable, with a 10 inch full touch screen operation interface and
a full Chinese menu. The appearance of the product is shown in the
figure below.
Equipment size 27cm * 18cm * 5cm (excluding antenna)
Bochuang space-time brand WiFi wireless environment
analyzer is a device developed to accurately locate WiFi terminal devices
such as mobile phones, computers and wireless cameras. The
positioning system accurately locates the target by receiving the
wireless signal transmitted when the mobile phone communicates with
the wireless access point, analyzing the protocol to confirm its
identity, and measuring the wireless signal strength of the WiFi
terminal.
2. Brief introduction of working process
Bochuang Space-time brand WIFI wireless environment
analyzer, the working diagram of the whole system is as follows:
Ii. Function Description
1) Scan and analysis of WIFI wireless network of Bochuang
Space-time brand
The device scans the surrounding WIFI wireless network to obtain
the wireless network name, device MAC, channel, encryption mode,
wireless signal strength and other information of the surrounding
wireless devices. According to the scanned information, the
connection relationship between the wireless access point and the
wireless terminal is analyzed and presented.
2) Accurate positioning of WIFI equipment
Accurate positioning of the target access point or target terminal,
with the use of flat plate antenna, confirm the target orientation.
The device supports simultaneous location tracking of multiple
targets.
3)WIFI network countermeasures
Counterattack the specified target terminal or the specified target
access point to prevent the target terminal from accessing any
hotspot and the target access point from being accessed by the
terminal.
Product name: wifi network analysis and control
equipment Brand: Bochuang Space-time model: BCSK-WG188 |
Control Device Types
| 1. Various WIFI routers, AP access points, MIFI (a portable WIFI
hotspot), soft AP and mobile hotspot, etc
2. All kinds of WIFI terminals, desktop computers, laptops,
tablets, mobile phones, smart TVS, cloud cameras, etc |
| Web standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.11a,IEEE802.11ac |
| spectrum | 2.4GHz,5.8GHz |
| Reception sensitivity | -5dBm~-100dBm |
| Range of control
distance | Coverage radius: 100m (environment dependent) |
| Detection capture rate | Hotspot: 100%; Connected terminal: 100%; unconnected terminal: 90% |
| Positioning accuracy | 10cm~100m Distance is related to the environment |
| Work hours | No less than 7 hours (from full charge) |
| hardware | Domestic integrated equipment |
| The operating system | Linux Ubuntu Open source operating system |
