    Waterproof UAV launcher omni-directional transmitting antenna 500-1500m automatic drive off forced landing UAV reaction

    Ask Lasest Price
    Brand Name : Bochuangshikong
    Model Number : BCSK-GD004
    Certification : CE CCC FC
    Price : USD
    • Product Details
    • Company Profile

    Waterproof UAV launcher omni-directional transmitting antenna 500-1500m automatic drive off forced landing UAV reaction

    Waterproof UAV launcher omni-directional transmitting antenna 500-1500m automatic drive off forced landing UAV reaction


    Dear friends, Shenzhen Bochuang spatiotemporal Communication Technology Co., Ltd. is a

    professional jammer manufacturer, focusing on mobile phone signal jammer, GPS jammer,

    UAV anti-jamming equipment, signal detector, detection system and other security

    equipment. If you need to contact or inquire, please email us 1369199493@qq.com , official

    website www.szbcsk.com Tel: 86013798491049


    Outdoor Waterproof Anti Drone System for 24 hour 7 day

    This anti drone system can force the drone land slowly or return home immediately when the drone intrudes in the 1000 meter
    radius of protection area.


    Operation
    * 3 pressing buttons to control on/off of GPS WIFI2.4G 5.8G
    * Control on/off at computer

    Feature
    * High gain fiberglass antenna and strong power push jamming RF amplifier
    * Coverage 360° round circle of 500-1000 meter radius
    * IP65 waterproof, heat resistant, anti shock, thunder protection
    * Smart cooling system design to ensure it is at low temperature and long time stable work

    Side ViewBack View



    Specification

    Brand Bo Chuang space time
    Model::BCSK-GD004
    Drone Jammer
    Jamming Frequency2.4G: 2400-2500MHz 100W
    2.4G: 2400-2500MHz 30W
    5.8G: 5725-5850MHz 30W
    GPS : 1560-1620MHz (Optional) 30W
    Protection Area500-1000 meter radius,depends on real environment
    Work Time24 hours 7 days continuously
    Water&Dust Proof LevelIP65 level
    Out shell MaterialDie Cast Aluminum Alloy
    Product Size50*45*25cm
    Product Weight29kg (not including antenna)
    Output Power190 W
    Power consumption360 W
    Power supplyAC Adapter 110-220V/DC 15A
    Working temperature-20 ° ~ +75 °
    Relative humidity10~95%

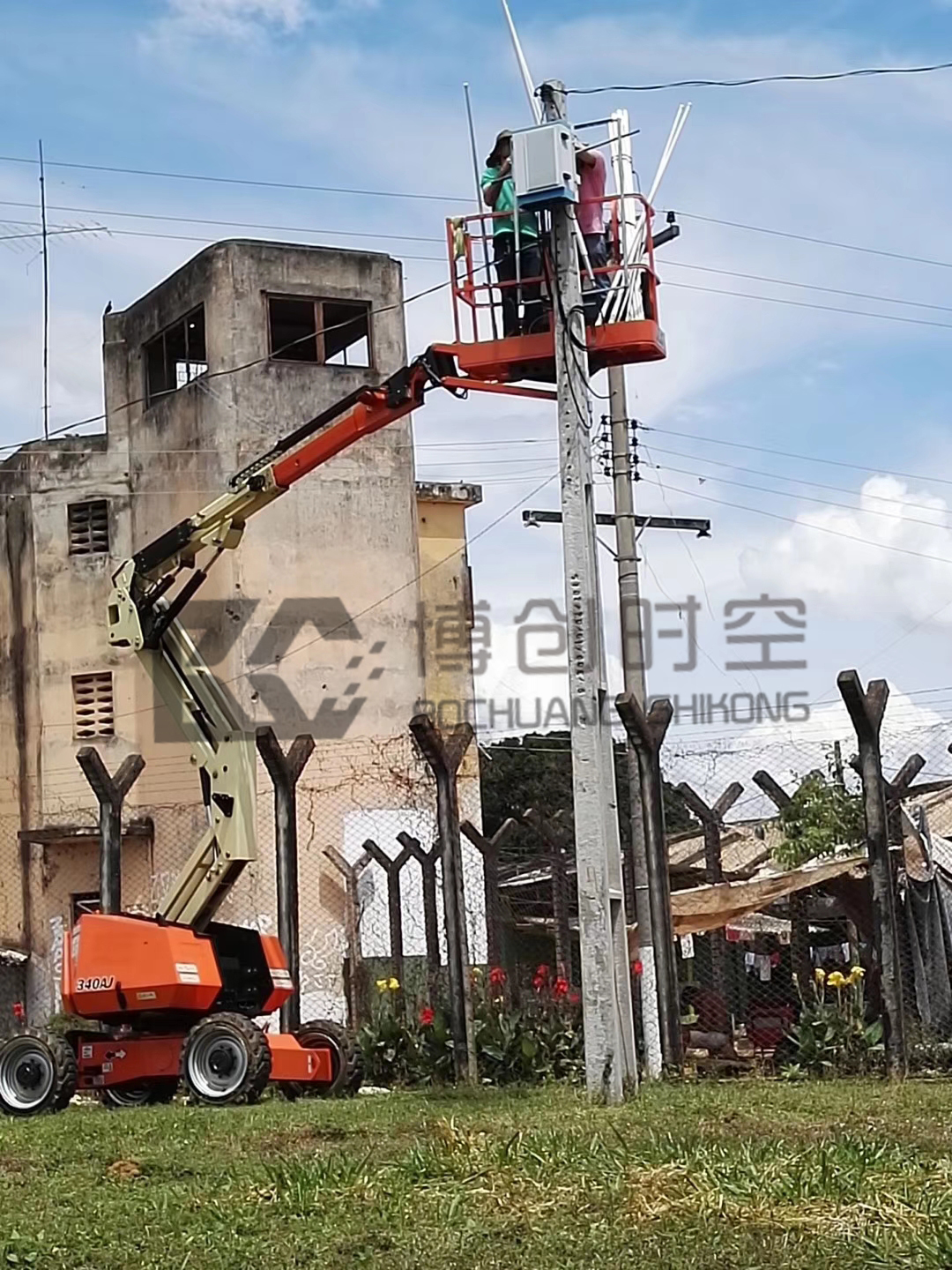

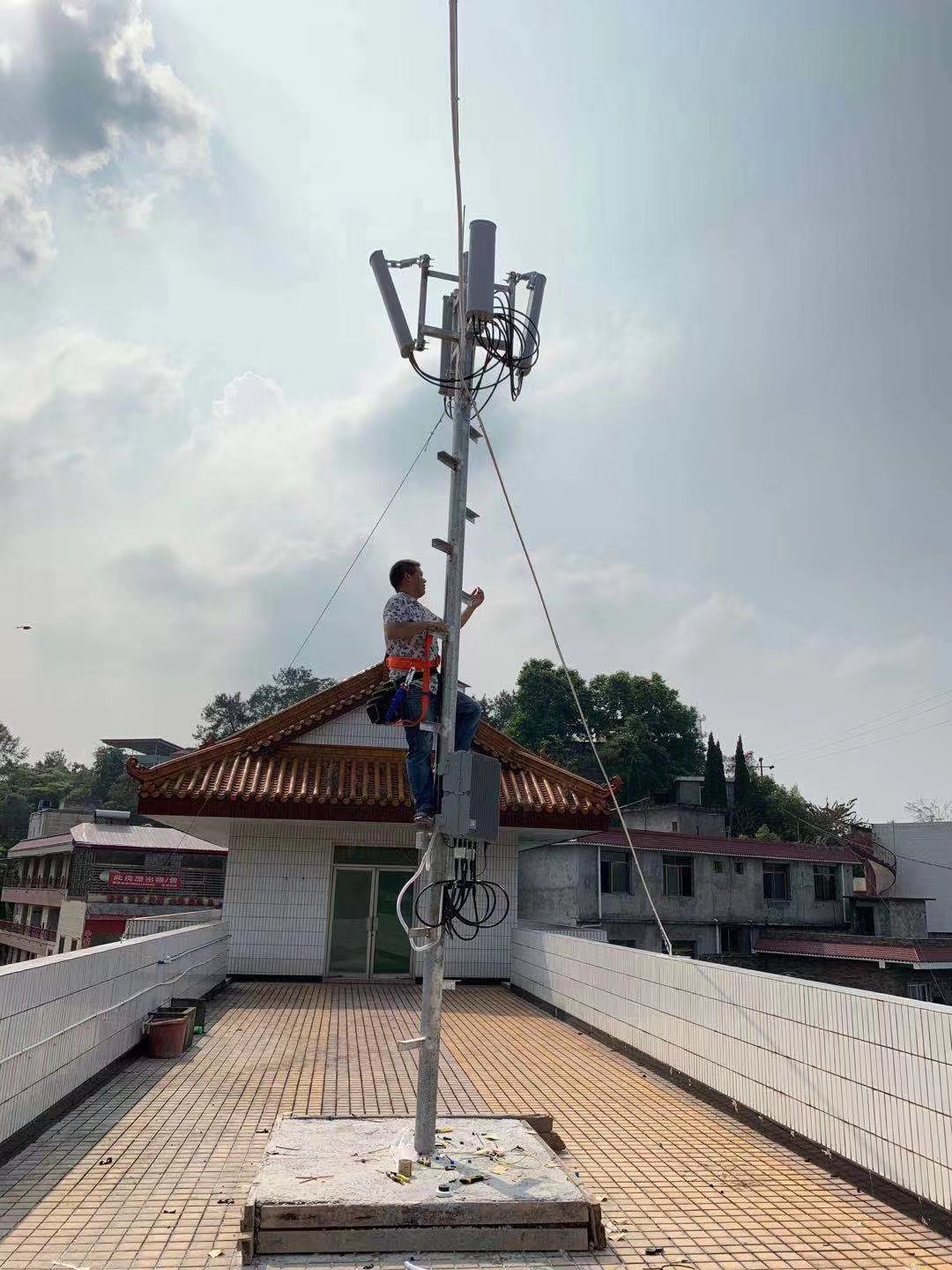

    InstallationWall Mount or Pole Holding
    Suggest Installation Height3-15m

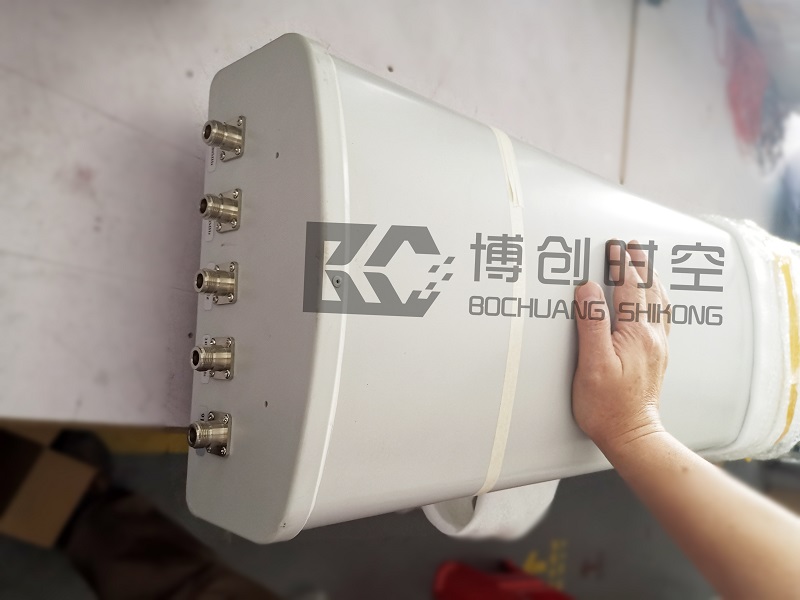

    High Gain Directional Antenna
    Dimensions*mm620*350*220mm
    (Height/Width/Depth)
    Package SizeΦ32*600mm
    Antenna weight(kg)0.39Kg
    Frequency RangeType A: 2400-2500MHz
    Type B: 5725-5850MHz
    Type C: 1560-1620MHz
    Gain3-5dBi
    VSWR≤1.5
    PolarizationVertical
    Horizontal Beam-width(0º)360º
    Vertical Beam-width(0º)25±3º
    Ovality (dB)≤±2dB
    Front-to-back ratio(dB)≥25
    Input Impedance(Ω)50Ω
    Maximum input power(W)100W
    Input connector typeN/M
    Lightning ProtectionDC Ground
    Rated Wind Velocity(m/s)60m/s
    Operational Humidity(%)10- 95
    Ra-dome ColorGray Color
    Ra-dome materialUPVC
    Operating temperature(ºC)-30~70 º
    Installation MethodPole Mount
    Mounting hardware(mm)¢40~¢80
    Mechanical tilt(º)0-10º


    Application
    Protect these areas from drone enter and interruption:
    > Government: Prison, Military, Police, Border Control, Government Buildings, Detention Centre, Drug rehabilitation centers, Other Law enforcement
    > Critical Infrastructure: Chemical Industry,Oil Depot,Oil Refinery, Gas Station Power generate plants,Nuclear power plants,Water control center, Reservoir
    > Mass Event: Sports Stadium&Events, Important Meetings, Entertainment Performance

    > Museums, Campus,Theatre,Church,Hospital
    > Scientific research center,Security Service,Test Facilities
